HW5: Projection Renderer

Remember that every source-code file you hand in must have a docstring at the top of it explaining what it is, what assignment it's part of, your name, the class name, the date, etc.

• camera.py, submitted on Canvas.
• projection_renderer.py, submitted on Canvas.
• scene.py, submitted on Canvas. This file, when run, should pop up a window showing a wireframe rendering of your scene, and then, after the first window is closed, another window showing a rasterized rendering of your scene.
• scene.pdf, a file full of screenshots, submitted on Canvas. There should be at least five screenshots: one of a wireframe rendering, one of a rendering produced by Mayavi, and three produced by your raster renderer.

Note that it's important to always use exactly the specified filename when handing in work for a CS class. (Canvas may automatically append a number to your filename; that's okay.) For instructions on creating a screenshot file, see HW0.

For this assignment, you will build a projection renderer on top of your scenegraph work from HW4.

• Part 1: Add color to your HW4 scenes by inserting new “surface” nodes to the scenegraph.
• Part 2: Define the posing method for a camera and the transformations used to put world-space points into the canonical view volume.
• Part 3: Implement the perspective transform to make a simple wireframe rendering, built on top of Matplotlib's line-plotting capabilities.
• Part 4: Implement backface culling, z-buffering, triangle rasterization, and incidence-based coloring to directly render your own picture of the scene.

Download the updated scenegraph.py and _scenegraph_base.py, as well as the starter code scene.py. You'll also need your transforms.py from HW4 (or my solution code, which I'll send you once everyone has submitted HW4).

In makeScene(), combine your two scenegraphs from HW4 into a single scene, following the directions in the TODO comment. Add arguments to the signature of the function, and write a good docstring.

Then modify the scenegraph to include surface appearances for each shape instance in the scene, by inserting SurfaceNodes of your choice. Surface nodes located further down in the scene graph override ones further up.

Double-check yourself

instances = scene.getCompositeTransforms()
for (inst_xform, node, surf) in instances:
  print "====="
  print node
  print surf, surf.color
  print inst_xform

2a: Investigate Object-Oriented Programming in Python

2b: Camera Posing

2c: Projection Transforms

Download the starter code projection_renderer.py. Before anything else, use your text editor to find all occurrences of the string “TODO”. Notice there are many TODO comments. The rest of the assignment consists of implementing the things marked with TODO comments, one by one, in order. To figure out what to do, you'll need to read the instructions here, the comments themselves, as well as the surrounding code and docstrings.

Read over the plotLines() function to understand what it does.

Now fill in the perspectiveView() function, to apply the compound mapping that takes vertices in object space to vertices in the canonical view volume (including perspective projection).

Once you've filled that in, go back to scene.py. In the main function, create a Camera to render your scene. Here's an example that matches the default viewpoint used by the Mayavi helper:

eye = [13.2, -41.2, 19.0]
look_at = [0, 0, 0]
up = [0, 0, 1]
im_width = 300
im_height = 200
camera = Camera(eye, look_at, up, 0.01, 100)
camera.setViewAngles(float(im_width)/im_height, 35)


After setting up the camera, call plotLines() to show a rendering of your scene.

Take a screenshot of this rendered scene. Make sure you leave this code in place for your final submission: when run, scene.py should pop up the wireframe-view window first.

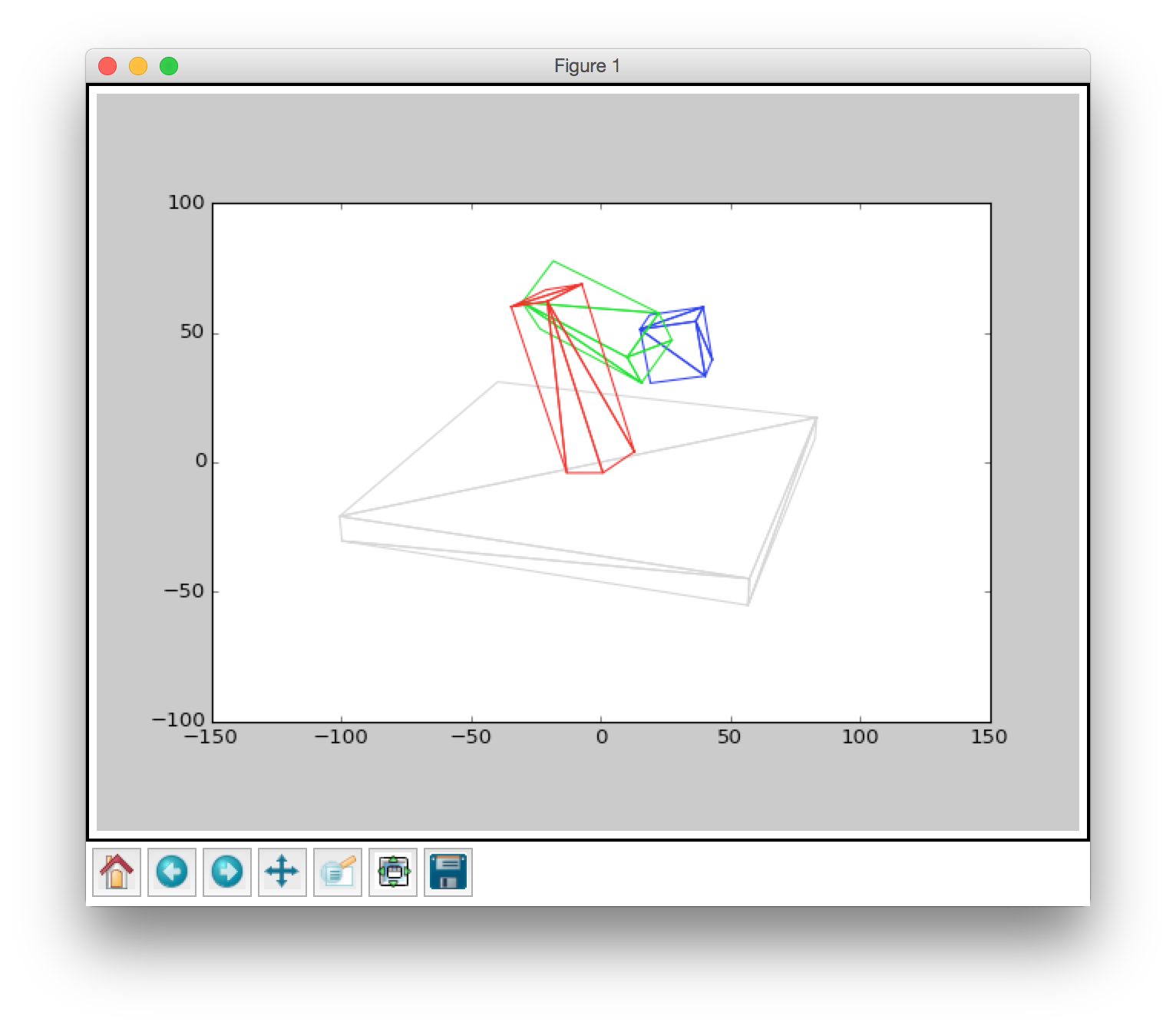

Here's an example screenshot for my robot-arm scene:

Double-check yourself

Compare how Mayavi renders your scene to the rendering produced above. Again, this is only testing code, and it should be fully removed from your final submission. Note that gfx_helper_mayavi and gfx_helper_plotting conflict with each other, so you should only import and use one of these at a time.

Comment out the import of gfx_helper_plotting and instead import gfx_helper_mayavi. Comment out your call to plotLines() as well. Then add this to main():

  fig = setUpFigure()
  for (inst_xform, node, surf) in instances:
    (verts, tris) = node.mesh
    drawTriMesh((inst_xform.dot(verts)), tris, fig, color=tuple(surf.color))

  showFigure(fig)

Take a screenshot of how the scene looks as rendered by Mayavi, and then remove this testing code.

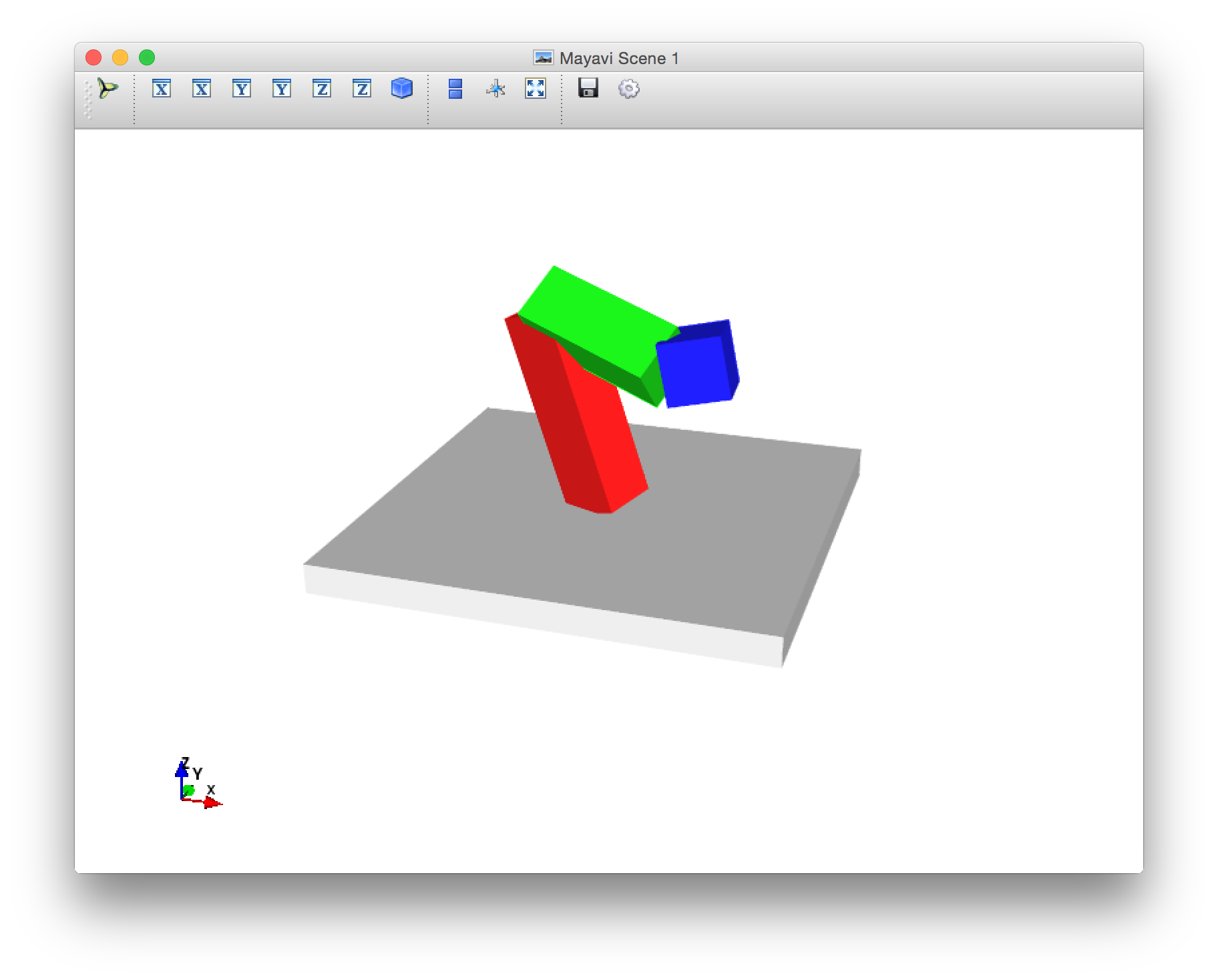

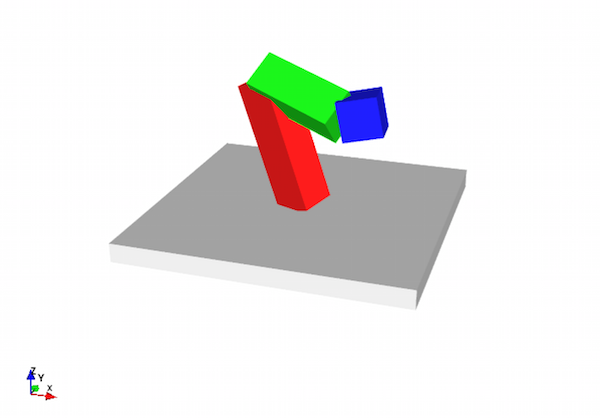

Here's how Mayavi renders that same robot-arm scene:

Fill in the rasterization-rendering functions in projection_renderer.py to implement backface culling, clipping, z-buffering, incidence-based shading, and triangle rasterization.

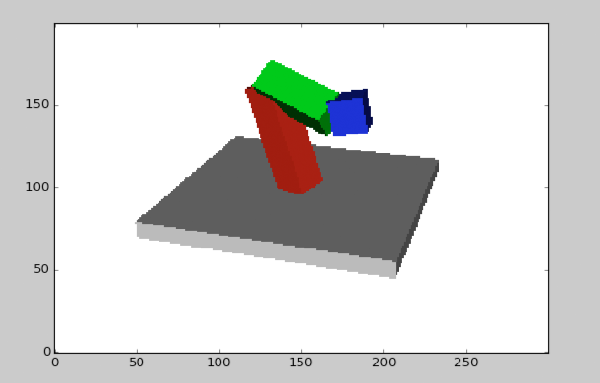

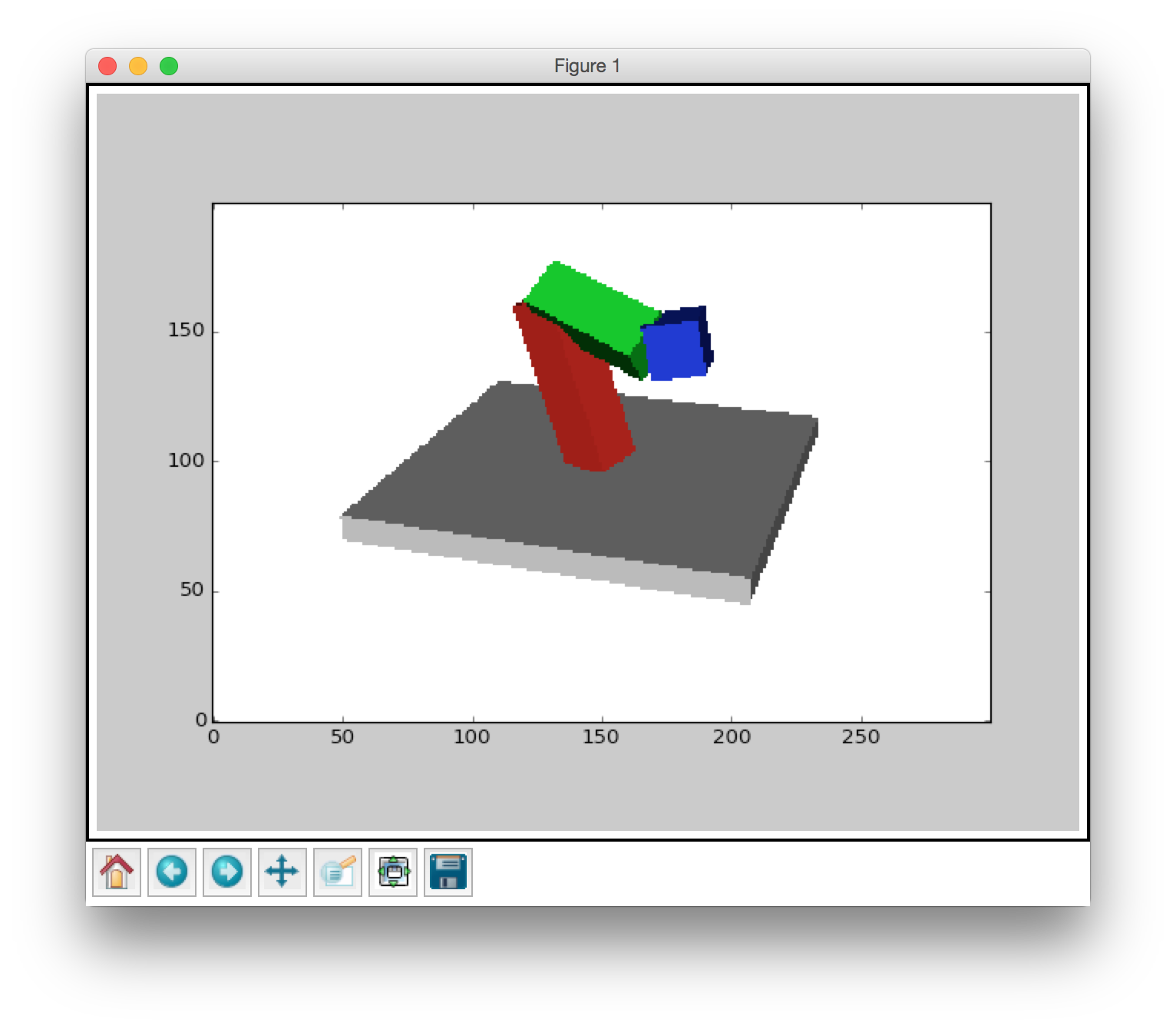

Here's a 300×200 rasterized image of the robot-arm scene produced by the routines that you'll fill in:

Before you start checking off TODO comments in projection_renderer.py, it's important to know where you're going.

1. In projection_renderer.py, read all the way through renderRaster(). Once you fill in all of that function, execution will reach the end, where rasterizeTriangle() gets called for each triangle. Read all the way through that function too.
2. In scene.py, add a call to renderRaster() to produce your image.

Now go through each TODO comment in projection_renderer.py, filling in the code indicated. Note that for many of these, there's already some placeholder code showing which variable you should create or modify.

First up are the TODOs in renderRaster(). The main job of this function is to convert from world coordinates to camera-centric coordinates, perform backface culling, shade each triangle's color according to its angle with respect to the viewer, and then (via helper functions) render each triangle into an image and z-buffer.

1. TODO: Use boolean indexing...
2. TODO: Apply view-angle-based shading...
3. TODO: Transform all the triangle vertices...
4. TODO: Create the empty image... and the z-buffer...

Now fill in the TODOs in rasterizeTriangle(). The main job of this function is to convert a single triangle from canonical view coordinates to pixel coordinates in the rendered image, and then paint each pixel as necessary (according to fragment rasterization, view clipping, and z-buffering).

1. TODO: Define the mapping...
2. TODO: Find the bounding box...
3. TODO: Convert to a bounding box in image coordinates...
4. TODO: For each (a, b) pair... There's no placeholder code for this one, as you have to decide how to implement the logic described.

Finally, fill in the TODOs in pointOnTriangle(). This is a helper function for rasterizeTriangle(). Its job is to use barycentric coordinates to decide whether and where a particular fragment lies on a triangle. I've filled in the math for computing the barycentric coordinates of the desired point on the triangle; you need to write code to use these coordinates.

1. TODO: Return None if...
2. TODO: Use the barycentric coordinates...

As your very last step in this assignment, go back to scene.py and add code to display your rendered image. Use the drawImage() function from gfx_helper_plotting.

Take screenshots of your scene rendered in three different ways, each one with a different camera pose. In your final submission, leave the setup for the second and third cases commented out, so that when I run scene.py, just the first one gets rendered. Here are the requirements for your three renders:

• One view should match the wireframe rendering you made above. Render this as a 300×200 image (that's (width)×(height)).
• Pick another camera pose and a different view angle. Pick a different aspect ratio (not 3:2). The shorter side of your image should be at least 150 pixels wide. The longer side of your image should be no more than 500 pixels wide.
• Pick a camera pose, view angle, and aspect ratio of your choice (while still obeying the image size requirements above). Adjust the near and far clipping planes so that they clip away parts of your scene in an obvious way — a viewer should be able to easily spot this effect in the rendered image. If it's not totally obvious, add some text to your screenshot document to guide me in spotting it.

This assignment is worth 20 points.

Criteria that just name a function are evaluated based on correctness of output on a variety of inputs. Correctness is defined with respect to the docstring in the starter code and/or the specifications in the assignment, including values, types, and array sizes of output.
